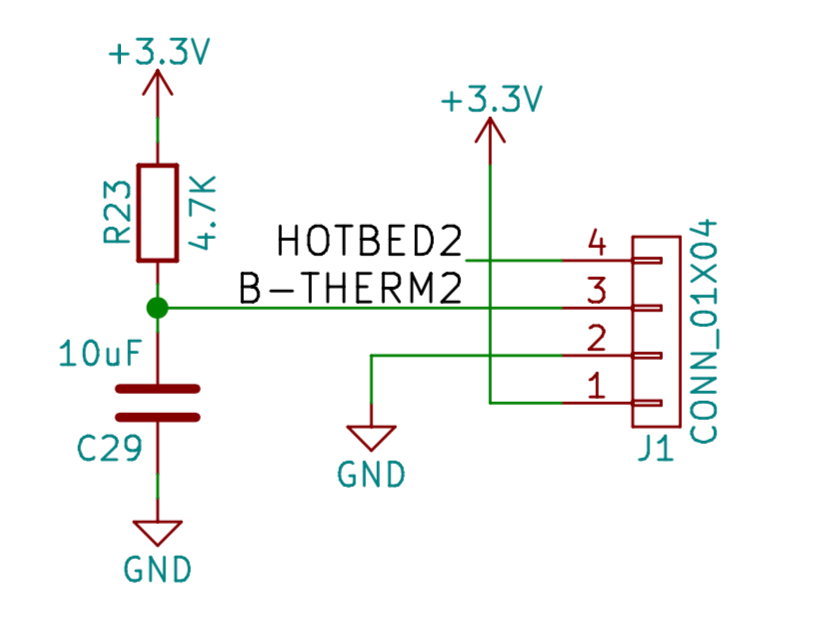

I have spent hours this week trying to get an accurate reading from the TinyFab heatbed thermistor (NTC 100k) via the opamp buffer circuit on the new beta board. The way the voltage divider has been laid out (to suit the stock CPU evidently) causes an inverted temp reading. I messed around with config for hours before I realised that on the underside of the TinyFab CPU is a 4 pin JST connector for the separate heatbed MOSFET driver that is connected to a voltage divider on the CPU PCB that puts the thermistor on the GND side of the series resistor pair:
By connecting the TinyFab heatbed thermistor SEN+ and SEN- to pins 3 and 2 of the TinyFab CPU underside connector and using the config below (CPU input 0.26 and beta 3950) I was able to again get an accurate bed temp reading and use the onboard heatbed MOSFET driver and shared 24V power source without requiring the external TinyFab heatbed driver board.
temperature_control.bed.enable true temperature_control.bed.sensor thermistor temperature_control.bed.thermistor_pin 0.26 temperature_control.bed.heater_pin 2.5 temperature_control.bed.set_m_code 140 temperature_control.bed.set_and_wait_m_code 190 temperature_control.bed.designator B temperature_control.bed.pwm_frequency 2000 temperature_control.bed.bang_bang false temperature_control.bed.hysteresis 2.0 temperature_control.bed.p_factor 13.7 temperature_control.bed.i_factor 0.097 temperature_control.bed.d_factor 24 temperature_control.bed.max_pwm 255 temperature_control.bed.beta 3950 temperature_control.bed.max_temp 150 temperature_control.bed.min_temp -10
Great that you figured it out! I've been playing around with my thermistor settings but I know they are not quite right. I'll switch to using it like this instead. Thanks for sharing.
